Overview

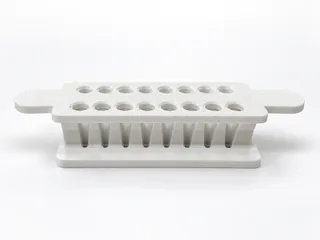

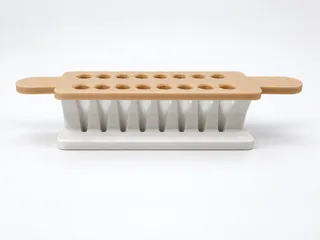

ClearUpp16 is a compact 2 × 8 rack for standard 0.2 mL PCR tubes and 8-tube strips. It is intended for routine magnetic bead separation where you want straightforward tube access without moving into a plate format.
Suitable for PCR clean-up, NGS library preparation, CUT&RUN, CUT&Tag and other nucleic-acid or protein purification procedures.
Made for the bead step, not for looking like a machine.
Magnetic clean-up is simple chemistry wrapped around repetitive tube handling. The rack needs to keep tubes organized, accessible and consistently positioned while you bind, separate, wash and elute.
ClearUpp16 keeps the familiar PCR-tube format for a practical 16-sample batch. It is manufactured in PETG in small series, which lets us refine the geometry from actual lab use rather than locking the design into expensive tooling.
Specifications
| Intended use | Magnetic bead separation in PCR clean-up, NGS library preparation, CUT&RUN, CUT&Tag and other nucleic-acid or protein purification procedures |
| Capacity | 16 × 0.2 mL PCR tubes |
| Tube compatibility | Standard 0.2 mL PCR tubes and 8-tube PCR strips |
| Format | 2 × 8 positions |
| Working volume | 5–200 µL |
| Separation time | Typically 1–2 min with concentrated SPRISelect beads* |
| Material | PETG, high-grade neodymium magnets |
| Operating conditions | Room temperature; maximum product temperature 40 °C |
| Dimensions | Approx. 125 × 32 × 23 mm |

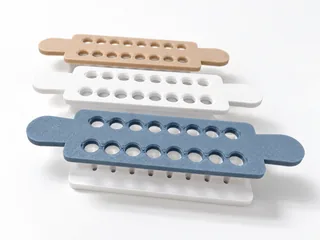

| Colours | Dark beige/white · Misty blue/white · White/white |
| Manufacture | Designed and manufactured by Assay Upp AB · Made in Sweden |
| Use | For professional laboratory use only · Research use only |
* Separation time may vary with bead concentration, sample volume and protocol conditions.
Care & handling
- Clean by wiping with a damp cloth.
- Avoid prolonged exposure to direct UV light.
- Avoid prolonged contact with organic solvents.
- Do not autoclave.
Magnet warning: Contains strong permanent magnets. Keep away from magnetically sensitive equipment and magnet-sensitive implanted medical devices.
Why 3D printing here?
This rack is manufactured in PETG using a controlled additive-manufacturing process. For a specialised tool produced in relatively small series, this lets us keep the geometry tied closely to the workflow and improve the design without waiting for a new mould.
Shipping & delivery
In-stock products are dispatched once per week via PostNord or DHL.
We currently offer standard shipping within the EU. For deliveries outside the EU, contact hello@easylikeihc.com before ordering so we can confirm shipping cost and applicable customs requirements.
